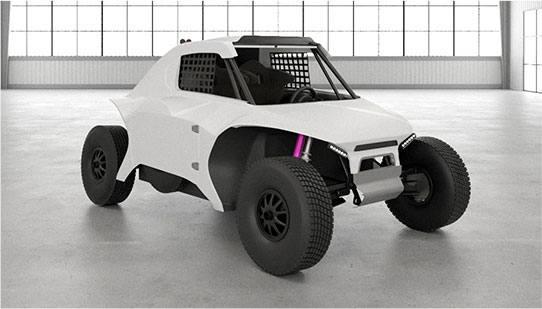

Taurus T3 EVO MAX

Transmission Permanent 4x4

The well know ETV full sequential gear box from 3MO have be tailored with dedicated gear ratio and drop gear to deliver best acceleration to the maximum speed of 135 km/h whatever the road conditions.

The gearbox is links with the engine with Tilton clutch system. 2 options are available:

• Double disk with dedicated release bearing spacer.

The lubrication is ensured by a mechanical oil pump with internal lubrication system or with splash lubrication technology. A 4+4 discs version (up to 16 friction faces) of the self-locking differential is available

Suspension

Brakes

The current brake package offer with its specific 4 pistons caliber and 20.5 mm disk an unequal breaking capability in the Challenger class vehicle and endless breaking endurance.

Rims

DAKAR II Braid rims offer a very competitive package with the 32� BF Goodrich KDR 3 for Baja and sandy road.

KMC EVO3 - Red Bull Off-Road Junior Team (each) Direct collaboration with the Red Bull Off Road Junior Team drivers / engineers and the KMC factory engineers. This is the EVO3 wheel that has been tested and refined over the last couple years -

Tires

TENSOR: Is a cross-country style rally and one of the most difficult motorsport events in the world. Cross-country rallies also known as  Rally Raid events, consist of timed off-road stages called Specials and transit sections which move the competitors between specials and the service camp known as the Bivuoac. At several times during the event, the Bivuoac will move to different locations requiring the entire population of the rally including organization assets and team service vehicles to the new location. Check out the below gallery of scenes from the Dakar Rally

BF GOODRICH: Tested in the deserts of Baja California, Mexico, and southwestern United States by championship-winning drivers, the 40x12.50R18 Baja T/A KR3 again raises the bar for the most successful brand in desert racing history: BFGoodrich. These tires are designed, engineered and made in the U.S.

Cooling Pack

Standard Taurus Cooling Pack 2024

Caming Soon: With 2024 regulation, the intercooler design is now free, and give us the opportunity to improve the cooling performance with an optional intercooler design in collaboration with PWR. The benefits are lower inlet manifold temperature and reduced pressure drop allowing stronger low end torque and high end performances

Steering

Fuel Tank

Full Tank 130 lits in Composite, 4 Pumps  -14 KG  (May be height spaces for the driver)

Intercoms

• t's a DG10 dedicated to Raid/x-country competitions with dedicated and improved filters, no Bluetooth, female connections to help prevent cable connection failures. Adapter cables are required for one unit (optional)
• This is available in the market and here below you can see the features of the intercom. We have implemented in this intercom and important feature in its environment. It is not possible to open it and it is specially treated to prevent the inside of the intercom from being affected by temperature changes, humidity, water and heat conditions making it much more resistant to failure (typical rust and the like).

Seat

Sparco Circuit QRT:

Homologation: FIA 8855-1999

Material: QRT

Ideal for Touring and Rally races

- Non-slip fabric for shoulder and seat restraint

- Divisible legrest and seat cushion

- Available in 2 sizes (Circuit II size L), with integrated HRS (Head Restraint System).

Fixed using M8 lateral fastenings with 290 mm spacing.

Weight: 8,6 kg

Seat Belts

SPARCO:

- 6 point harness

- 2'' FHR specific straps

- Compact T-bar

- Aluminium buckle

- Aluminium adjusters

- Rollcage fasteners (shoulders and thigh) and ultra-light karabiner (abdominal)

OMP :

SUPERLIGHT PROFESSIONAL SAFETY BELT

Lightweight and comfortable safety harness for saloon cars in polyester fabric. Forged aluminium ultralight adjusters, buckle in ergal machined from solid and magnesium. The Harness ensures best safety level ever thanks to the ultra-resistant buckle with an anti-unwitting opening system and exclusive double pin T-bar crotch attachments. FHR only.

Battery

Standard: PC950 34Ah Odyssey Extreme 12V, 400A SAE

Super B:  Optional lithium battery allows to save 1kg compare to a standard battery and increase the available power in the car.

Lights Pack

Light Pack: Osram led side light and Lazer led 18

Premium Kit: Lazer  Carbon 4  side light and Lazer  Linear -18Elite + (W+Y)

The customer can add in his initial purchase an extra light kit as well as an extra complementary light kit to enhance the view in dunes and on circuits that require extra lighting power.

Windshield

Adds approximately 15 kg to the car. The windshield wiper system is delivered installed.  Tempered glass.
